FS106101

Screw - abutment bracket to manifold - Mini Spi

Name: Screw - abutment bracket to manifold - Mini Spi
SKU: FS106101
Price: 0.504001 GBP
Availability: InStock

In stock

Special Price £0.50 £0.42 Regular Price £0.76

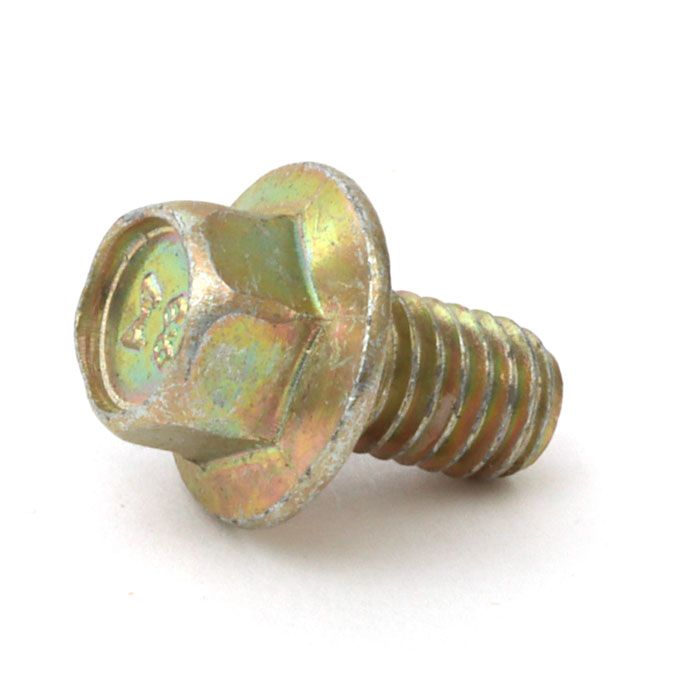

Set Screw flanged type to mount the abutment bracket to exhaust manifold on Mini SPI models

Buy quality Classic Mini throttle cables and injection system parts from Mini Sport, the worlds premier online Mini store.

Details

Set Screw flanged type to mount the abutment bracket to exhaust manifold on Mini SPI models

Buy quality Classic Mini throttle cables and injection system parts from Mini Sport, the worlds premier online Mini store.

No.

Description

Notes

Part No.

1	Throttle body - manual/ automatic		MLB10028
2	Injector assembly		MMJ10004
	Gasket - hydraulic body to body - throttle body		JZX3064
3	Kit - potentiometer		MMJ10003
4	Packer injector to	manifold	LZV1101
5	Fuel feed and return pipes		WJW10030
6	Clamp - fuel pipes		WJU10137
7	Screw - clamp		FS106165
8	Bracket - abutment		MHU10059
9	Bracket - rail		WJU10136
10	Nut - flanged-throttle body to manifold		FN108041
11	Screw - abutment bracket to manifold		FS106101
12	Seal - air box to throttle body		PHN10011
13	Heater PTC - inlet manifold		MED10003
14	Clip-retaining - P.T.C Heater		CR110551
15	Tie-cable - stepper motor loom		AAU6365
	Adaptor - potentiometer		JZX2454
16	Manifold-inlet	NLA	LKB10477
17	Manifold-exhaust		LKC10090
18	Stud - exhaust manifold		TD108051
	Gasket - Manifold - injection		LKJ100580EVA
19	Stud - manifold to packer		TE108071
20	Nut - stud		GFK3436
21	Washer - plain		GFK1114
22	Nut and washer - manifold stud		LYH10008
23	Ferrule - inlet manifol to head		12G297
24	Hot box-manifold		LKK10025
25	Screw-hot box to manifold		FS106101
26	Air Cleaner Assembly		PHB10081
27	Element		GFE1143
28	Duct-elbow		PHD10129
29	Hose-sensor to A.T.C.		PHP10027
30	Sensor - thermal	NLA	ADU6109
31	Seal - sensor		UAM1828
32	Sensor-air temperature		NNK10001
33	Duct - hot air	NLA	PHD10210
	Screw - heatshield to duct		PKE10002
34	Pipe - vacuum - inlet manifold		PHP10043
35	Screw - air cleaner to throttle body		PYP10018
36	Valve - assembly depression control		LLN10009
37	Seal - air cleaner to throttle		PHN10011
	Tie - vacuum pipe to harness		AAU6365

No.

Description

Notes

Part No.

1	Throttle body - manual/ automatic		MLB10028
2	Injector assembly		MMJ10004
	Gasket - hydraulic body to body - throttle body		JZX3064
3	Kit - potentiometer		MMJ10003
4	Packer injector to	manifold	LZV1101
5	Fuel feed and return pipes		WJW10030
6	Clamp - fuel pipes		WJU10137
7	Screw - clamp		FS106165
8	Bracket - abutment		MHU10059
9	Bracket - rail		WJU10136
10	Nut - flanged-throttle body to manifold		FN108041
11	Screw - abutment bracket to manifold		FS106101
12	Seal - air box to throttle body		PHN10011
13	Heater PTC - inlet manifold		MED10003
14	Clip-retaining - P.T.C Heater		CR110551
15	Tie-cable - stepper motor loom		AAU6365
	Adaptor - potentiometer		JZX2454
16	Manifold-inlet	NLA	LKB10477
17	Manifold-exhaust		LKC10090
18	Stud - exhaust manifold		TD108051
	Gasket - Manifold - injection		LKJ100580EVA
19	Stud - manifold to packer		TE108071
20	Nut - stud		GFK3436
21	Washer - plain		GFK1114
22	Nut and washer - manifold stud		LYH10008
23	Ferrule - inlet manifol to head		12G297
24	Hot box-manifold		LKK10025
25	Screw-hot box to manifold		FS106101
26	Air Cleaner Assembly		PHB10081
27	Element		GFE1143
28	Duct-elbow		PHD10129
29	Hose-sensor to A.T.C.		PHP10027
30	Sensor - thermal	NLA	ADU6109
31	Seal - sensor		UAM1828
32	Sensor-air temperature		NNK10001
33	Duct - hot air	NLA	PHD10210
	Screw - heatshield to duct		PKE10002
34	Pipe - vacuum - inlet manifold		PHP10043
35	Screw - air cleaner to throttle body		PYP10018
36	Valve - assembly depression control		LLN10009
37	Seal - air cleaner to throttle		PHN10011
	Tie - vacuum pipe to harness		AAU6365

More Information
SKU	FS106101
Manufacturer	Genuine
