LQP10033AERO

Oil Transfer Pipe - Stainless Aeroquip Braided Pipe 1992-2001

In stock
Special Price £81.35 £67.79 Regular Price £85.85
Be the first to review this product
Oil transfer pipe - stainless aeroquip braided pipe 1992-2001
Add to Wish List Add to Compare
Oil Transfer Pipe - Stainless Aeroquip Braided Pipe 1992-2001

Details

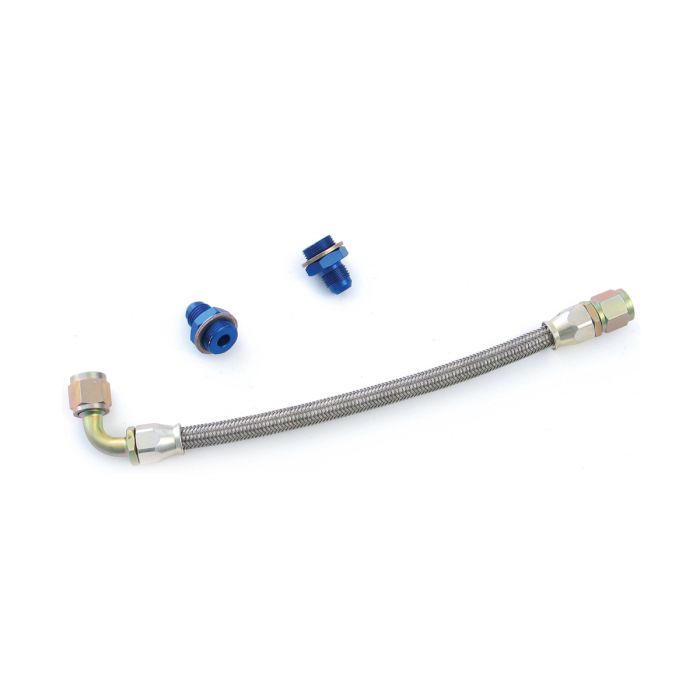

This is a replacement oil transfer pipe finished in stainless steel aeroquip braided.

The original fixed pipe is no longer available.

Find all related parts with our Easy Parts Finder


No.
Description
Notes
Part No.
1
Oil Filter Head - spin on type

12A2032
2
Oil Filter - Mk1 - paper type

GFE103

Oil Filter - Automatic to '96

GFE104T
2
Oil Filter - all models including SPi

GFE443
2
Oil Filter - MPi/MPi auto only

CDU1268
2
MPi oil cooler filter

2008
3
Flange Bolt - filter head to crankcase

TAM1186

Stud - Oil Filter Head

CHS2513

Nut - Filter Head

GFK3213

Washer - Filter Head

GFK1115

Spring Washer

MSLMS0047
4
Gasket - Oil Filter head to cylinder block - early

88G402
4
Gasket - Oil Filter head to cylinder block - late

12A2035
5
Pipe - oil filter to crankcase aeroquip
pre '90
TAM2106AERO
6
Screw - banjo union

2A715
7
Copper Washer

22A134
8
Connector-oil pipe

TAM2119
8
Connector-oil pipe

TCZ106
9
Pipe - oil filter to crankcase
'90 on
LQP10033AERO
9
Pipe - oil filter to crankcase

CAM1018-6
10
Tube Nut - pipe

LYH10014
11
Rubber Seal - pipe

LZB10017
12
Pipe - oil filter - gearbox to crankcase - Automatic

LQP10038
13
Adaptor-pipe to gearbox
NLA
DAM7601
14
'O' Ring - Automatic

22A1563
15
Oil Pump - 2 bolt 1275cc A+
Slot Drive
AHU1048
15
Oil Pump - high capacity
Slot Drive
CAM86614
15
Oil Pump - 850cc, 998cc, 1098cc
Peg Drive
12G793
15
Oil Pump - 1275cc
Spider Drive
CHM140
15
Oil Pump - 3 bolt 998cc A+
Slot Drive
GLP139
16
Gasket-oil pump

12G730B
17
Flange Bolt - pump to crankcase 1/4" UNF x 1 1/2"

TAM1174
17
Bolt - pump to crankcase 1/4" UNF x 1 3/4"

BH604141

Spring Washer

GFK1124
18
Oil Pump - Automatic
NLA
GLP107
19
Screw - allen - pump to crankcase
NLA
12A1254
20
Pipe-oil outlet - Automatic

22A1185
21
'O' Ring - Automatic

22A1562
22
Block - outlet pipe - Automatic
NLA
22A1187
23
'O' Ring-internal - Automatic

22A1560
24
Valve - oil release

12H865
25
Spring - oil release valve

6K853

Oil Pressure release valve
KIT
12H865KIT
26
Copper Washer - release valve

6K431B
27
Release valve cap nut

12A1851
28
Oil Dip stick
pre '97
LQM100380
28
Oil Dip stick
'97 on
LQM100630

Oil Dip stick CHROME - Blue, Red or Polished top

MSLMS0539

Oil Dip stick - Automatic

DAM7599

Oil Pressure Switch

GPS133
29
Oil Pressure Switch
MPi
GPS135

More Info

More Information
SKU LQP10033AERO
Manufacturer Mocal
