BP10

Brake Pipe - 10" (254mm)

Name: Brake Pipe - 10" (254mm)
SKU: BP10
Price: 7.776001 GBP
Availability: InStock

In stock

Special Price £7.78 £6.48 Regular Price £8.40

Be the first to review this product

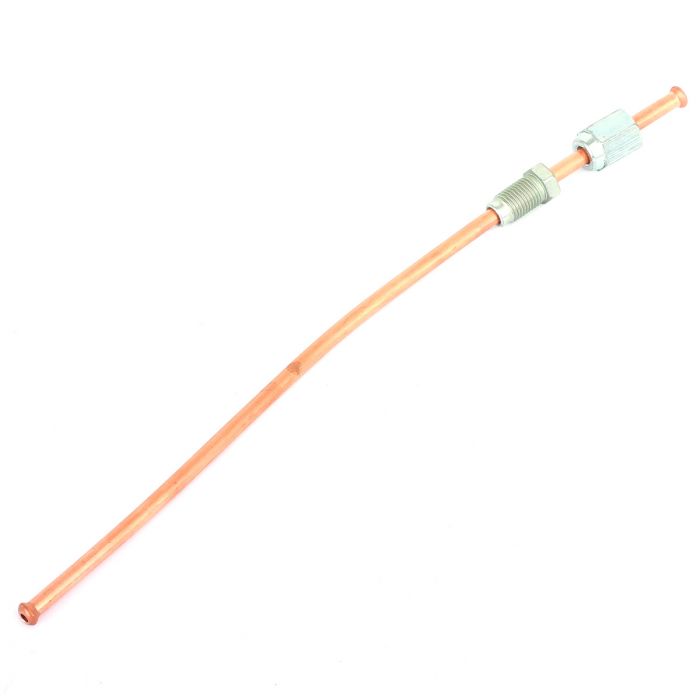

10" (254mm) brake pipe from rear flexible hose to rear wheel cylinder

Details

Ready made 10" (254mm) brake pipe.

Rear flexible hose (GBH250) to rear wheel cylinder (GWC1102). 1 female UNF/1 male UNF.

Buy top quality Classic Mini spares and parts from Mini Sport, the worlds premier online Mini Store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	254mm (10'') master cylinder to 3 way	- 2 x M	BP10
2	762mm (30") master cylinder to 3 way LHD	- 2 x M	BP30
	762mm (30") master cylinder to servo 1275GT	- 2 x M	BP30
3	432mm (17") 3 way to RH front brake hose	- 2 x M	BP17
4	432mm (17") 3 way to RH front hose AUTO	- 2 x M	BP17
7	152mm (6'') rear regulating valve to RH hose	- 1 x M, 1 x F	BP6
7	203mm (8'') inertia valve to RH rear hose	- 1 x M, 1 x F	BP8
7	229mm (9'') inertia valve to RH rear hose, hydro	- 1 x M, 1 x F	BP9
	rear hose to rear wheel cylinder, hydrolastic	- 1 x M, 1 x F	BP8
9	254mm (10'') rear hose to wheel cylinder VAN	- 1 x M, 1 x F	BP10A
10	305mm (12") brake pipe to master cylinder	- 2 x M	BP12
12	356mm (14") master cylinder to 3 way	- 2 x M	BP14
11	254mm (10'') bridge pipe front wheel cylinders	- 2 x M	BP10
	483mm (19") 3 way to front hose RH, saloon	- 2 x M	BP19
8	610mm (24") servo to 3 way connector (Mk3 S)	- 2 x M	BP24A
	610mm (24") rear regulating valve to LH hose	- 2 x M	BP24A
	660mm (26") rear reg. valve to LH hose, hydro	- 1 x M, 1 x F	BP26
	737mm (29") m/cylinder to warning switch LHD	- 2 x M	BP29
13	813mm (32") master cylinder to servo	- 2 x M	BP32
	839mm (33") master cylinder to 3 way LHD	- 2 x M	BP33
	889mm (35") inertia valve to LH rear hose	(1 x M, 1 x F) NLA	BP35
	940mm (37") inertia valve to LH rear hose hydro	(1 x M, 1 x F) NLA	BP37
	1067mm (42") servo to RH front hose LHD	(2 x M) NLA	BP42
6	1090mm (43") RH front hose to LH front hose	- 2 x M	BP43
6	1118mm (44") RH front hose to LH front hose	- 2 x M	BP44
5	2565mm (101") 3 way to rear regulating valve	- 2 x M	BP101
5	2642mm (104") 3 way to rear reg. VAN	- 2 x M	BP104
	2695mm (106") 3 way to rear reg. valve Van	- 2 x M	BP106
	2695mm (109") warning switch to inertia valve	(2 x M) NLA	BP109
	432mm (17") tube connector to LH front hose	- 2 x M	BP17
	737mm (29") warning switch to tube connector	- 2 x M	BP29
	762mm (30") master cylinder to warning switch	- 2 x M	BP30
	2440mm (96") warning switch to RH rear hose - saloon with split diagonal brake system	- 1 x M, 1 x F	BP96
	2695mm (116") warning switch to LH rear hose - saloon with split diagonal brake system	- 1 x M, 1 x F	BP116
	2565mm (101") warning switch to RH rear hose van, estate, pick-up with split diagonal brake system	(1 x M, 1 x F) NLA	BP101A
	3048mm (120") warning switch to LH rear hose van, estate, pick-up with split diagonal brake system	- 1 x M, 1 x F	BP120
	Draper 7 Piece Brake Pipe Flaring Tool Kit		TOL37870
	Hand held pipe bending tool - small radius bends - 3/16" (4.76mm) pipe.		AUT160
	Pipe bending tool - o.d. 3/16 - 3/8" (4.76-10mm) bends to radius of 3/4" - 1 1/4" (1.9 - 3.2cm).		AUT111
	Male Brass Fittings M10 x 1mm 3/16"	- x 10	AUTM-M10
	Male Brass Fittings 3/8 x 24 UNF 3/16Ó	- x 10	AUTM-3/8
	Female Brass Fittings 3/8 x 24 UNF 3/16Ó	- x 10	AUTF-3/8
	Female Brass Fittings M10 x 1mm 3/16"	- x 10	AUTF-M10
	Copper Brake Pipe - 3/16" 25m roll		AUTHCP316
	Eezibleed - one man bleed - brake/clutch		GUNG4062
	Vacuum pump for bleeding & vac testing		GUN77003
	Brake adjusting spanner		TOLSPAN07200
	Brake bleed spanner - 1/4'' & 7mm	NLA	TOL660145SP
	Brake caliper windback tool - 14 piece		GUN3476

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	254mm (10'') master cylinder to 3 way	- 2 x M	BP10
2	762mm (30") master cylinder to 3 way LHD	- 2 x M	BP30
	762mm (30") master cylinder to servo 1275GT	- 2 x M	BP30
3	432mm (17") 3 way to RH front brake hose	- 2 x M	BP17
4	432mm (17") 3 way to RH front hose AUTO	- 2 x M	BP17
7	152mm (6'') rear regulating valve to RH hose	- 1 x M, 1 x F	BP6
7	203mm (8'') inertia valve to RH rear hose	- 1 x M, 1 x F	BP8
7	229mm (9'') inertia valve to RH rear hose, hydro	- 1 x M, 1 x F	BP9
	rear hose to rear wheel cylinder, hydrolastic	- 1 x M, 1 x F	BP8
9	254mm (10'') rear hose to wheel cylinder VAN	- 1 x M, 1 x F	BP10A
10	305mm (12") brake pipe to master cylinder	- 2 x M	BP12
12	356mm (14") master cylinder to 3 way	- 2 x M	BP14
11	254mm (10'') bridge pipe front wheel cylinders	- 2 x M	BP10
	483mm (19") 3 way to front hose RH, saloon	- 2 x M	BP19
8	610mm (24") servo to 3 way connector (Mk3 S)	- 2 x M	BP24A
	610mm (24") rear regulating valve to LH hose	- 2 x M	BP24A
	660mm (26") rear reg. valve to LH hose, hydro	- 1 x M, 1 x F	BP26
	737mm (29") m/cylinder to warning switch LHD	- 2 x M	BP29
13	813mm (32") master cylinder to servo	- 2 x M	BP32
	839mm (33") master cylinder to 3 way LHD	- 2 x M	BP33
	889mm (35") inertia valve to LH rear hose	(1 x M, 1 x F) NLA	BP35
	940mm (37") inertia valve to LH rear hose hydro	(1 x M, 1 x F) NLA	BP37
	1067mm (42") servo to RH front hose LHD	(2 x M) NLA	BP42
6	1090mm (43") RH front hose to LH front hose	- 2 x M	BP43
6	1118mm (44") RH front hose to LH front hose	- 2 x M	BP44
5	2565mm (101") 3 way to rear regulating valve	- 2 x M	BP101
5	2642mm (104") 3 way to rear reg. VAN	- 2 x M	BP104
	2695mm (106") 3 way to rear reg. valve Van	- 2 x M	BP106
	2695mm (109") warning switch to inertia valve	(2 x M) NLA	BP109
	432mm (17") tube connector to LH front hose	- 2 x M	BP17
	737mm (29") warning switch to tube connector	- 2 x M	BP29
	762mm (30") master cylinder to warning switch	- 2 x M	BP30
	2440mm (96") warning switch to RH rear hose - saloon with split diagonal brake system	- 1 x M, 1 x F	BP96
	2695mm (116") warning switch to LH rear hose - saloon with split diagonal brake system	- 1 x M, 1 x F	BP116
	2565mm (101") warning switch to RH rear hose van, estate, pick-up with split diagonal brake system	(1 x M, 1 x F) NLA	BP101A
	3048mm (120") warning switch to LH rear hose van, estate, pick-up with split diagonal brake system	- 1 x M, 1 x F	BP120
	Draper 7 Piece Brake Pipe Flaring Tool Kit		TOL37870
	Hand held pipe bending tool - small radius bends - 3/16" (4.76mm) pipe.		AUT160
	Pipe bending tool - o.d. 3/16 - 3/8" (4.76-10mm) bends to radius of 3/4" - 1 1/4" (1.9 - 3.2cm).		AUT111
	Male Brass Fittings M10 x 1mm 3/16"	- x 10	AUTM-M10
	Male Brass Fittings 3/8 x 24 UNF 3/16Ó	- x 10	AUTM-3/8
	Female Brass Fittings 3/8 x 24 UNF 3/16Ó	- x 10	AUTF-3/8
	Female Brass Fittings M10 x 1mm 3/16"	- x 10	AUTF-M10
	Copper Brake Pipe - 3/16" 25m roll		AUTHCP316
	Eezibleed - one man bleed - brake/clutch		GUNG4062
	Vacuum pump for bleeding & vac testing		GUN77003
	Brake adjusting spanner		TOLSPAN07200
	Brake bleed spanner - 1/4'' & 7mm	NLA	TOL660145SP
	Brake caliper windback tool - 14 piece		GUN3476

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	220mm (8.5'') m/cylinder to PR valve 10mm	- 2 x M (metric)	BP8M
1	229mm (9'') pre GMC227 to PR valve 10mm	- 2 x M (metric)	BP9M
3	356mm (14") GMC227 to PR valve 10mm	- 2 x M (metric)	BP14M
3	559mm (22") master cylinder to PR valve 10mm	Cooper SE, Cooper 1300cc and SPi- 2 x M (metric)	BP22M
3	660mm (26") master cylinder to PR valve	- 2 x M (metric)	BP26M
4	195mm (7.5'') PR valve to tube connector	- 2 x M (metric)	BP7M
6	Connector tube (metric)		BMK2466A
7	260mm (10'') tube connector to RH front hose	- 2 x M (1x metric)	BP10M
8	1093mm (43") LH to RH front hoses	- 2 x M	BP43
8	1118mm (44") RH front hose to LH front hose	- 2 x M	BP44
9	2440mm (96") PR valve to rear 3 way	- 2 x M (1x metric)	BP96M
9	2590mm (102") PR valve to rear 3 way	- 2 x M (1x metric)	BP102M
10	3 way connector - rear subframe, each		3H2424
11	Set Screw - 3 way to rear subframe	- 1/4" UNF x 1 1/4"	SH604091
12	Spring Washer	- 1/4"	GFK1124
13	Nut	- 1/4" UNF	GFK3211
	610mm (24") rear regulating valve to LH hose	- 1 x M, 1 x F	BP24
14	640mm (25") 3 way LH rear Hose	- 1 x M, 1 x F	BP25
15	152mm (6'') 3 way to RH rear hose	- 1 x M, 1 x F152mm (6'') rear regulating valve to RH hose	BP6
16	Rubber Hose standard	front disc type	GBH249
16	Rubber Hose standard	front drum type	GBH170
17	Banjo connector - 2 way		21A654
18	Banjo Bolt connetor for stoplight switch (C16062)		7H7995
18	Banjo Bolt (no switch)		C5192A
18	Brake light switch	- pre '76	C16062
19	Copper Washer - front hose to banjo		233220A
20	Copper Washer - banjo to banjo bolt		3H550
21	Lock Nut - RH front hose to subframe		21A228
22	Lock Nut - LH front hose to subframe		2K8686
23	Lock Washer		WE600101
24	Regulator valve, all Mk1/2 to '69 inc Cooper S		21A1774
24	Regulator valve, Mk3 '69 to '78		21A2031
26	Standard Rubber Hose Rear each		GBH250
27	Lock Nut - rear hose to radius arm		NT606041
28	Lock Washer - rear hose to radius arm & rear subframe		GHF323
29	254mm (10'') rear hose to wheel cylinder	- 1 x M, 1 x F	BP10
30	Clip - brake pipe to front subframe		11K9181
	Clip - pipe to master cylinder,	LHD '88on	AAU7803A

More Info

More Information
SKU	BP10
Manufacturer	Mini Sport

Bought Together

Frequently Bought Together

Brake Pipe - 10" (254mm)
Special Price £7.78 £6.48 Regular Price £8.40
Wheel Nut - Genuine Rover Mini Wheels
Special Price £1.46 £1.22 Regular Price £1.97
Brake Caliper Bolt
Special Price £0.62 £0.52 Regular Price £0.76
Rear hose lock nut each
Special Price £0.41 £0.34 Regular Price £0.58
Mini Handbrake lever clevis pin
Special Price £0.95 £0.79 Regular Price £1.10

Customers Who Bought This Item Also Bought

SPDSP678FR Poly Mini front subframe front mounting each

Poly Front Subframe Mount tear drop each

Special Price £9.97 £8.31 Regular Price £12.60

Air filter screws for Classic MIni MPI/SPI

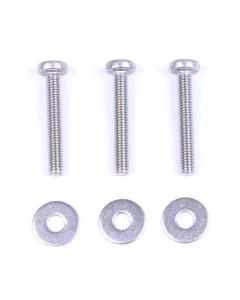

Mini MPI/SPI air filter screws
