AUD4355

HIF SU Carburettor Spring - Red - 1275cc Stage 1 Kit

Name: HIF SU Carburettor Spring - Red - 1275cc Stage 1 Kit
SKU: AUD4355
Price: 11.448001 GBP
Availability: InStock

In stock

Special Price £11.45 £9.54 Regular Price £12.17

Be the first to review this product

Hif su carburettor spring - red - 1275cc stage 1 kit

Details

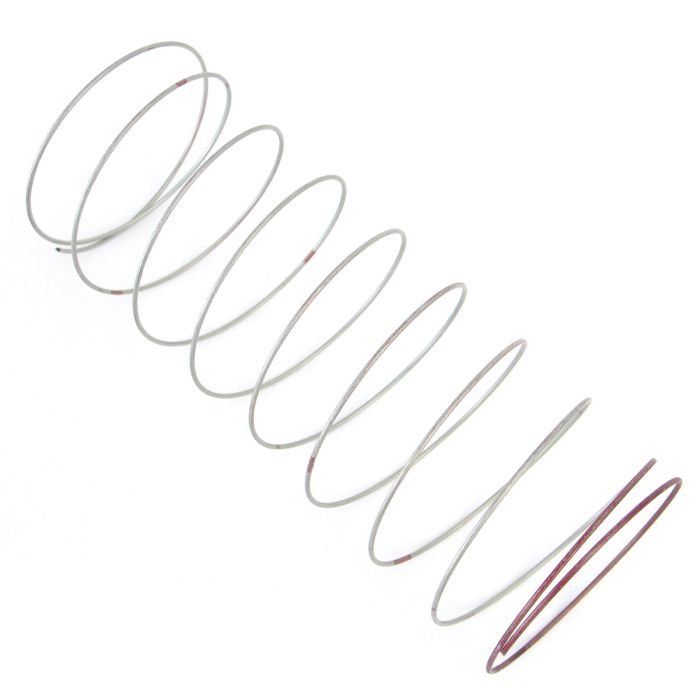

Red Piston Spring. Load at length 4.5 oz @ 1.530 in. Suitable for Ball Bearing Suction Chambers.

Piston Springs phased out heavy weighted pistons and are designed to produce a resistance to the rising suction piston in order to balance the venturi size with the correct mixture/air flow. The ultimate aim being that the engine should be able to produce full power with the piston fully raised together with progressive acceleration and steady cruising over the whole range of driving. Rich mixture for fast acceleration being provided by the damper.

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	Standard Jet Needle .090" (Spring type)	HIF38	NZX4036
1	Standard Jet Needle .100" (Spring type)	HIF44	NZX8071
2	Piston Spring - RED	HIF38/HIF44	AUD4355
3	Damper Cap	HIF44	LZX2085
3	Damper Cap	HIF38	LZX1511
4	Jet Assembly Kit	HIF44	WZX1453
4	Jet Assembly Kit	HIF38	WZX1455
5	Needle & Seat Kit	HIF38/HIF44	VZX1099
6	Float Kit	HIF38/HIF44	WZX1509
7	Throttle Spindle Kit	HIF44	WZX1128
7	Throttle Spindle Kit	HIF38	WZX1264
8	Throttle Disc Kit	HIF44	WZX1414
8	Throttle Disc Kit	HIF38	WZX1387
9	Gasket Pack	HIF44	AUE970
9	Gasket Pack	HIF38	AUE971
10	Service Kit	HIF44	CSK75
10	Service Kit	HIF38	CSK78
11	Rebuild Kit	HIF44	CRK167
11	Rebuild Kit	HIF38	CRK274
12	HIF6/44 Air Inlet Gasket 1 3/4"	HIF44	GUG705576GM
12	HIF4/38 Air Inlet Gasket 1 1/2"	HIF38	AUD4705
13	HS6 Manifold Flange Gasket 1 3/4"	HIF38/HIF44	GUG705561GM
14	Jet Bearing Kit	HIF38/HIF44	WZX1441
15	Mixture Screw Kit	HIF38/HIF44	WZX1255
16	Idle Adjusting Screw Kit (Not Illustrated)	HIF38/HIF44	WZX1256
17	Bi-Metal Assembly Kit	HIF38/HIF44	WZX1257
18	Float Spindle Kit	HIF38/HIF44	WZX1258
19	Circlip	HIF38/HIF44	JZX1586
21	Suction Chamber Screws	HIF38/HIF44	JZX1394
23	Needle Guide Kit	HIF38/HIF44	WZX1274
25	Clamp Plate Gasket	HIF38/HIF44	AUD3605
26	Throttle Spindle Nut	HIF38/HIF44	AJD8104
27	Tab Washer	HIF38/HIF44	AUD3323
28	Throttle Spindle Seal	HIF38/HIF44	JZX1994
28	Throttle Spindle Seal - Early Type	HIF38/HIF44	AUD3577
29	Throttle Spindle Bush (Not Illustrated)	HIF38/HIF44	AUD3080
6	Throttle Disc Screws	HIF38/HIF44	AUC1358
37	Starter Spindle	HIF38/HIF44	CUD2791
39	Lever / Fast Idle Screw Kit	HIF38/HIF44	WZX1269
43	Spindle Seal	HIF38/HIF44	AUD3577
44	Spring Support	HIF38/HIF44	AUD4217
45	Retaining Screws	HIF38/HIF44	AUD3606
46	Float Lid Seal	HIF38/HIF44	AUD3588
47	Float Lid	HIF38/HIF44	JZX1005
48	Float Lid Screw Kit	HIF38/HIF44	WZX1268
49	Cable Clamp Screw (Not Illustrated)	HIF38/HIF44	AUD4099
	HIF38 Air Inlet Gasket 1 1/2"	HIF38	AUD4705
	HIF44 Air Inlet Gasket 1 3/4"	HIF44	GUG705576GM
	HIF38 Manifold Flange Gasket 1 1/2"	HIF38	AUD2219X
	HIF44 Manifold Flange Gasket 1 3/4"	HIF44	GUG705561GM
	HIF44 Insulation Gasket - 11mm	HIF44	GUG705964GM
