ADA36002EC

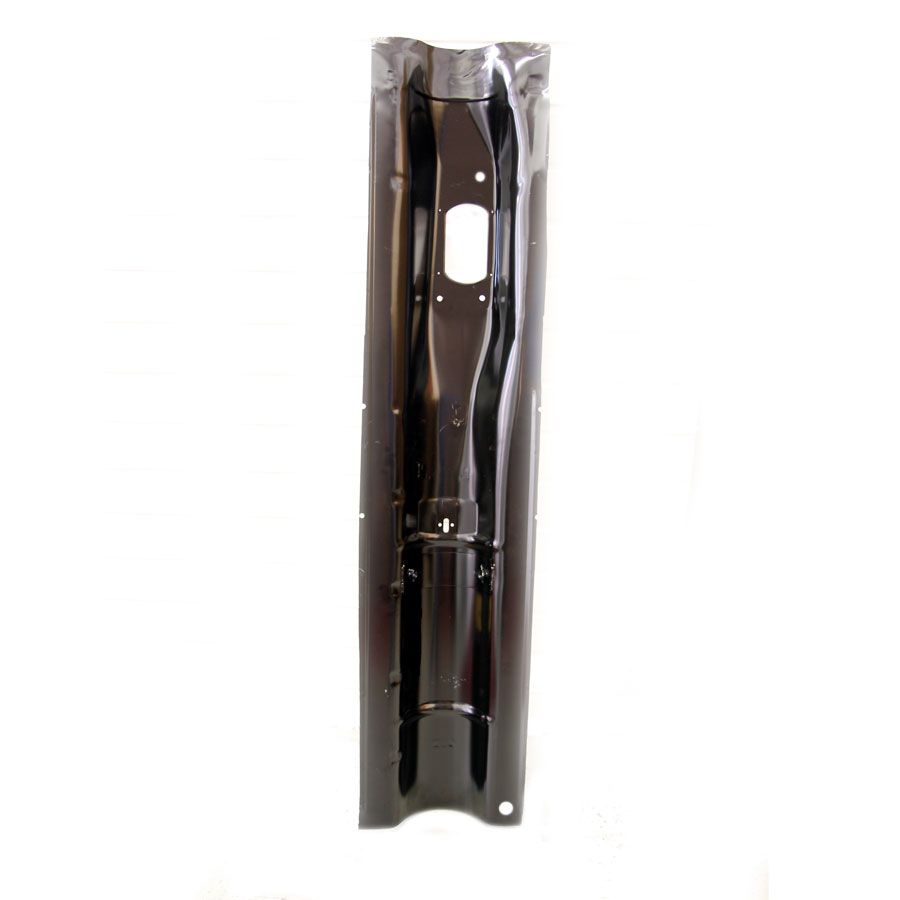

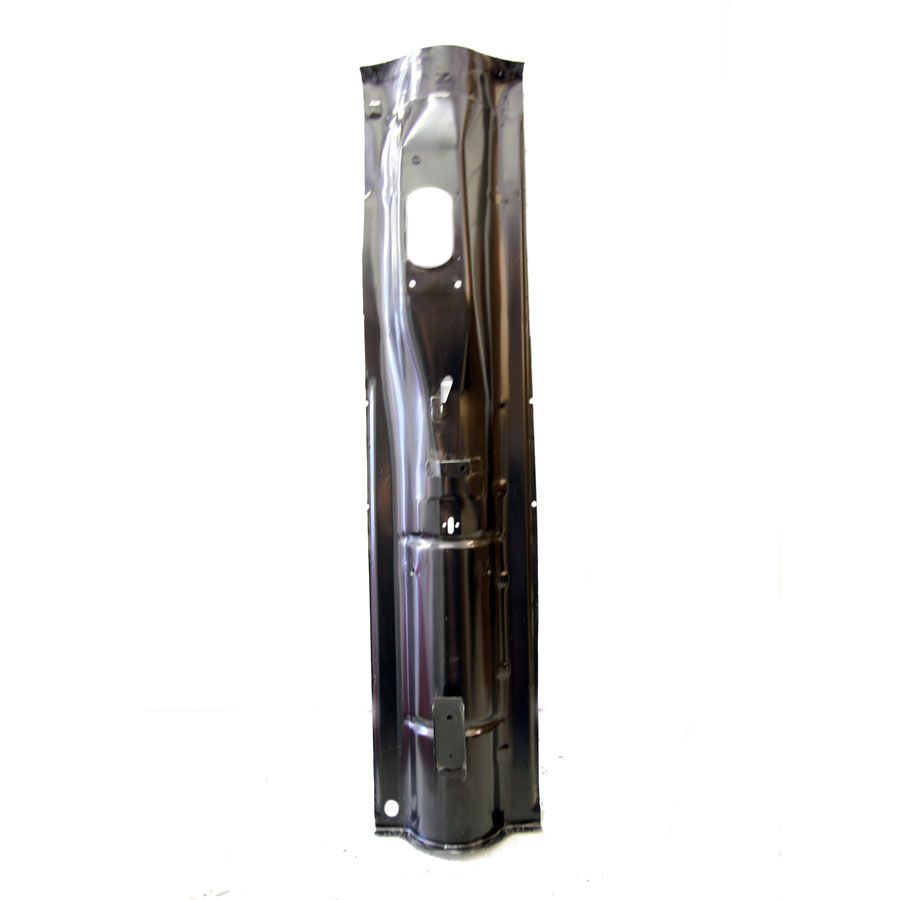

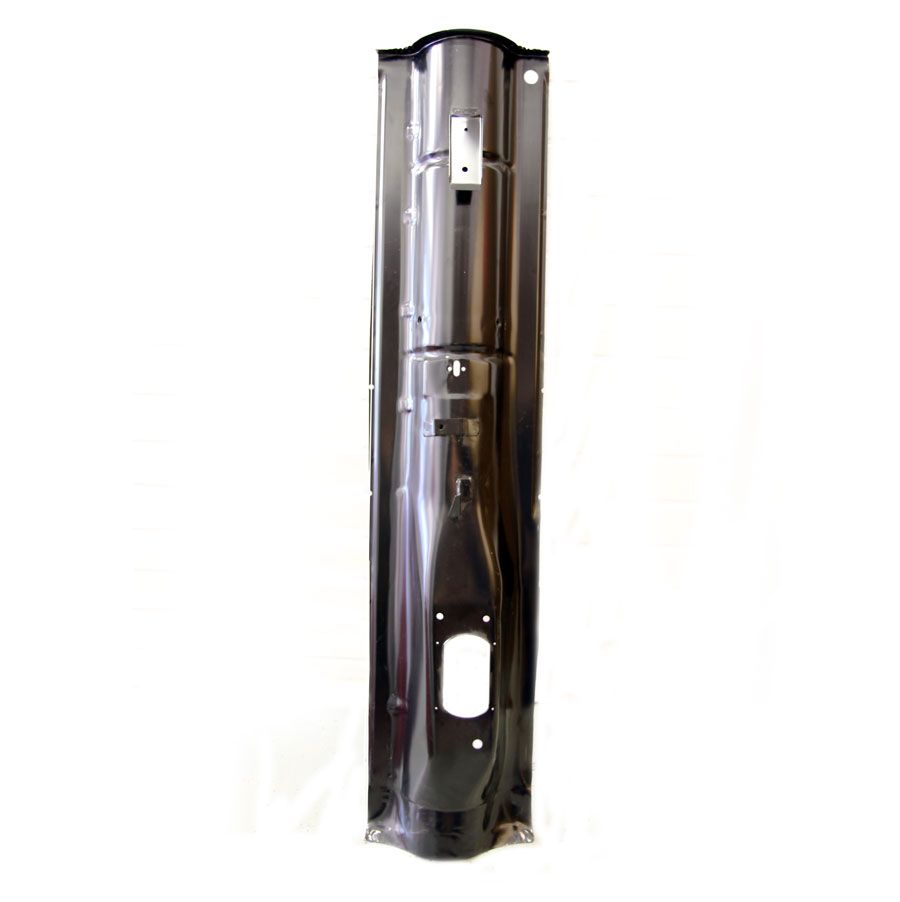

Genuine Floor Tunnel Assembly - 1976-1989

Name: Genuine Floor Tunnel Assembly - 1976-1989
SKU: ADA36002EC
Price: 285.204001 GBP
Availability: InStock

In stock

Special Price £285.20 £237.67 Regular Price £316.28

Be the first to review this product

Details

Genuine Floor Tunnel Assembly - 1976-1989

Find all related parts with our Easy Parts Finder

No.

Description

Heritage

Genuine

Magnum

Classic

Re-production

OE Spec

1	Floor to 1st Grove With Sills Saloon LH	ADA36002LQ		MCR14.33.01.27
1	Floor to 1st Grove With Sills Saloon RH	ADA36002RQ		MCR14.33.01.28
	Floor to 1st Grove With Sills Saloon LH MK1-3			MCR11.33.01.27
	Floor to 1st Grove With Sills Saloon RH MK1-3			MCR11.33.01.28
	Floor to 1st Grove With Sills Saloon to 1992 LH		40-12-75-5
	Floor to 1st Grove With Sills Saloon to 1992 RH		40-12-75-6
	Floor to 1st Grove With Sills Saloon 1992 on LH		40-14-75-5
	Floor to 1st Grove With Sills Saloon 1992 on RH		40-14-75-6
2	Floor Assembly Comp inc Inner & Outer Sills 1990 on	ADA36002
2	Floor Assembly Comp inc Inner & Outer Sills 1976-89	ADA36002E		MCR13.33.00.00
2	Floor Assembly Full Width 76 on	CZH2669
2	Floor Assembly Full Width inc inner & outer sills Mk1			MCR11.33.00.00
	Floor Assembly Full Width inc inner & outer sills Mk2/3			MCR12.33.00.00
3	Floor Panel Front - Rear inc inner sill LH	HMP441005		MCR11.31.04.17
3	Floor Panel Front - Rear inc inner sill RH	HMP441004		MCR11.31.04.18
3	Floor Panel Front - Rear inc inner sill to 1970 LH		40-10-75-1
3	Floor Panel Front - Rear inc inner sill to 1970 RH		40-10-75-2
3	Floor Panel Front - Rear inc inner sill 1974-92 LH		40-12-75-1
3	Floor Panel Front - Rear inc inner sill 1974-92 RH		40-12-75-2
3	Floor Panel Front - Rear inc inner sill 1992 on LH		40-14-75-1
3	Floor Panel Front - Rear inc inner sill 1992 on RH		40-14-75-2
3	Floor Panel Front - Rear LH			MCR11.31.04.47
3	Floor Panel Front - Rear RH			MCR11.31.04.48
4	Floor Panel Front LH to 1992		40-10-74-1
4	Floor Panel Front RH to 1992		40-10-74-2
4	Floor Panel Front LH to 1992 (restoration)		40-10-74-1A
4	Floor Panel Front RH to 1992 (restoration)		40-10-74-2A
4	Floor Panel Front LH 1992 on (restoration)		40-14-74-1
4	Floor Panel Front RH 1992 on (restoration)		40-14-74-2
5	Floor Panel Front to Rear includes Inner and
	Outer Sill Saloon LH 1990 on	ADA36002LH
5	Floor Panel Front to Rear includes Inner and
	Outer Sill Saloon RH 1990 on	ADA36002RH
5	Floor Panel Front to Rear includes Inner and
	Outer Sill Saloon LH MK1-3			MCR11.33.01.37
5	Floor Panel Front to Rear includes Inner and
	Outer Sill Saloon RH MK1-3			MCR11.33.01.38
5	Floor Panel Front to Rear includes Inner and
	Outer Sill Saloon LH MK3-5			MCR14.33.01.37
5	Floor Panel Front to Rear includes Inner and
	Outer Sill Saloon RH MK3-5			MCR14.33.01.38
5	Floor Panel Front to Rear includes Inner and
	Outer Sill Saloon LH to 1970		40-10-75-3
5	Floor Panel Front to Rear includes Inner and
	Outer Sill Saloon RH to 1970		40-10-75-4
5	Floor Panel Front to Rear includes Inner and
	Outer Sill Saloon LH 1974-92		40-12-75-3
5	Floor Panel Front to Rear includes Inner and
	Outer Sill Saloon RH 1974-92		40-12-75-4
5	Floor Panel Front to Rear includes Inner and
	Outer Sill Saloon LH 1992 on		40-14-75-3	5
5	Floor Panel Front to Rear includes Inner and
	Outer Sill Saloon RH 1992 on		40-14-75-4
6	Floor Panel Rear LH		40-10-76-1
6	Floor Panel Rear RH		40-10-76-2
6	Floor Panel Rear - Full inner sill LH		40-12-76-3	MCR11.31.04.67
6	Floor Panel Rear - Full inner sill RH		40-12-76-4	MCR11.31.04.68
6	Floor Panel Rear - Full inner sill 1992 on LH		40-14-76-1
6	Floor Panel Rear - Full inner sill 1992 on RH		40-14-76-2
7	Floor Tunnel To Rear Seat Support	14A6624		MCR11.32.07.05
	Floor Toeboard Comp Assembly	AHA36006
	Floor Toeboard Panel	AHA36007
	Toe Board Mk1-3			MCR11.36.00.00
	Toe Board Mk4 on			MCR14.36.00.00
	Toe Board End Repair LH			MCR11.36.00.17
	Toe Board End Repair RH			MCR11.36.00.18
8	Floor Tunnel Assembly 76-89	ADA36002EC
8	Floor Tunnel Assembly 90on	ADA36002C
8	Floor Tunnel Assembly Round Mk1 - Magic Wand Type			MCR11.31.04.75
8	Floor Tunnel Assembly Round Mk1/2 - Remote			MCR12.31.04.75
8	Floor Tunnel Assembly Square Mk3-5			MCR13.31.04.75
9	Floor X Member Assembly - Remote change up to '70		40-10-001	MCR11.32.01.05
10	Floor X Member Assembly - Rod change '70 on	CZH2675	40-10-002	MCR13.32.01.05
	Floor X-Member 1/2 LH	CZH2675R
	Floor X-Member 1/2 RH	CZH2675L
	Floor X/Member End LH			MCR11.32.01.17
	Floor X/Member End RH			MCR11.32.01.18
11	Hand Brake Mounting Bracket	CZH3214
12	Pocket Closing Plate LH	14A8995		MCR11.37.02.03
12	Pocket Closing Plate RH	14A8994		MCR11.37.02.04
13	Pocket Filler LH	14A6612	40-10-82-7	MCR11.41.07.03
13	Pocket Filler RH	14A6611	40-10-82-8	MCR11.41.07.04
	Pocket Filler Segment LH		40-10-82-9	MCR11.41.08.03
	Pocket Filler Segment RH		40-10-82-10	MCR11.41.08.04
14	Pocket - Companion Box Assembly LH	ADO360030
14	Pocke - Companion Box Assembly RH	ADO360020
14	Companion Box Assembly LH MK1-2		40-10-51-5	MCR11.37.00.03
14	Companion Box Assembly RH MK1-2		40-10-51-6	MCR11.37.00.04
14	Companion Box Repair Panel LH MK1-2		40-10-51-7	MCR11.37.00.17
14	Companion Box Repair Panel RH MK1-2		40-10-51-8	MCR11.37.00.18
14	Companion Box Assembly LH MK3 on			MCR13.37.00.03
14	Companion Box Assembly LH MK3 on			MCR13.37.00.04
14	Companion Box Repair Panel LH MK3			MCR13.37.00.17
14	Companion Box Repair Panel LH MK3			MCR13.37.00.18
	Companion Box Ash Tray Mount LH			MCR11.37.01.03
	Companion Box Ash Tray Mount RH			MCR11.37.01.04
	Sill Inner & Outer Complete LH MK1-3			MCR11.33.01.17
	Sill Inner & Outer Complete RH MK1-3			MCR11.33.01.18
	Sill Inner & Outer Complete LH MK3-5			MCR14.33.01.17
	Sill Inner & Outer Complete RH MK3-5			MCR14.33.01.18
	Sill Inner Complete LH			MCR11.31.04.27
	Sill Inner Complete RH			MCR11.31.04.28
	Sill Inner Complete MK1/2 to 1970 LH		40-10-06-3
	Sill Inner Complete MK1/2 to 1970 RH		40-10-06-4
	Sill Inner Complete 1970 on LH		40-12-06-3
	Sill Inner Complete 1970 on RH		40-12-06-4
15	Sill Inner repair panel LH		40-10-06-1
15	Sill Inner repair panel RH		40-10-06-2
16	Sill Jacking Point Complete LH	14A8375	40-10-78-1	MCR11.32.06.01
16	Sill Jacking Point Complete RH	14A8374	40-10-78-2	MCR11.32.06.02
17	Jacking Point Only LH	14A8336
17	Jacking Point Only RH	14A8337
18	Seat Belt Mounting Plate - Inner Sill	24A2186		MCR11.31.10.00
	Sill Kick Strip Alloy			14A7270
19	Sill Outer 4.1/2" Wide LH		40-12-00-1
19	Sill Outer 4.1/2" Wide RH		40-12-00-2
20	Sill Outer 9" Wide MK1/2 to 1970 LH	40-10-01-1
20	Sill Outer 9" Wide MK1/2 to 1970 RH	40-10-01-2
20	Sill Outer 9" Wide 1970 on LH		40-12-01-1
20	Sill Outer 9" Wide 1970 on RH		40-12-01-2
21	Sill Outer as Original Mk1/2 Saloon LH		40-10-00-1	MCR11.32.00.01
21	Sill Outer as Original Mk1/2 Saloon RH		40-10-00-2	MCR11.32.00.02
21	Sill Outer Original Mk3 on LH	14A9535	40-12-00-3	MCR14.32.00.01
21	Sill Outer Original Mk3 on RH	14A9534	40-12-00-4	MCR14.32.00.02
22	Slinging Bracket Front	24A41		MCR11.31.07.05
23	Slinging Bracket Rear LH	24A43		MCR11.31.08.03
23	Slinging Bracket Rear RH	24A42		MCR11.31.08.04
	Main Floor Multiclip	ALA5527
	SupportCable/Pipe Support - 4 Finger - Mk1-5			MCR11.31.05.05
	SupportCable/Pipe Support - 3 Finger - Mk1-5			MCR11.31.06.05
	Battery Cable Retaining Strip Mk1-3	24A1463		MCR11.31.09.05
	Carpet Clip Mounting Plate Mk1-5			MCR11.31.11.05
	Subframe Mounting Panel Complete MK1-4		40-10-003	MCR11.32.02.00
24	Subframe Mounting Panel Complete 1991 on	HMP441008
	Subframe Rear Mounting Half Panel LH	HMP441007
	Subframe Rear Mounting Half Panel RH	HMP441006
	Subframe Rear Mounting Repair Panel LH		40-10-82-1	MCR11.32.02.17
	Subframe Rear Mounting Repair Panel RH		40-10-82-2	MCR11.32.02.18

More Info

More Information
SKU	ADA36002EC
Manufacturer	British Motor Heritage
Body Panels	Floor
