2A4337

Front Shock Absorber Lower Mounting Pin - Mini '59-'01

Name: Front Shock Absorber Lower Mounting Pin - Mini '59-'01
SKU: 2A4337
Price: 7.848001 GBP
Availability: InStock

In stock

Special Price £7.85 £6.54 Regular Price £8.99

Be the first to review this product

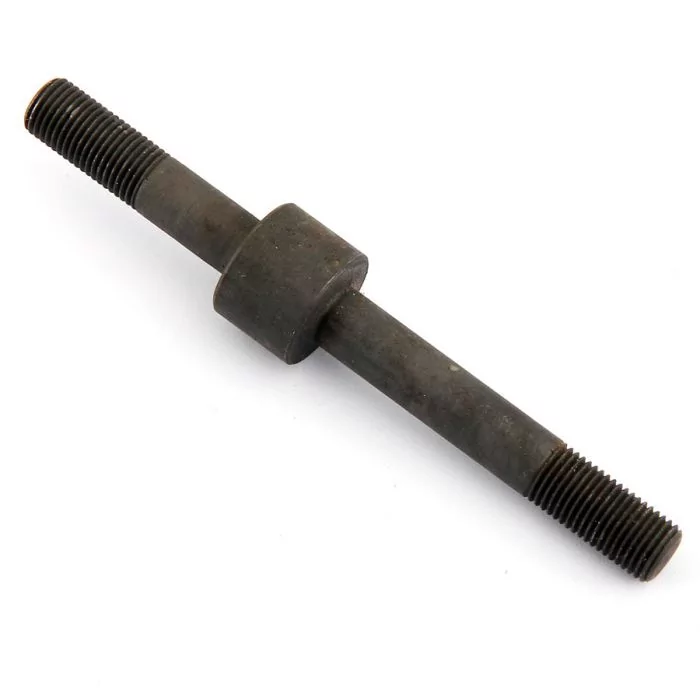

Mini front shock absorber lower mounting pin

Details

2A4337 - Mini front shock absorber lower mounting pin.

This is the pin that sits in the Mini top arm (21A2690 & 21A2691) and secures the bottom end of the shock absorber. Each pin requires 2 GFK3323 nuts. If you are changing the Minis front shocks we recommend changing these too.

Sold as each, 2 required per car. Also available as an uprated version - C-AJJ3361.

Buy top quality Classic Mini suspension spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder

No.	Description	Notes	Part No.
1	Standard rubber cone - front & rear		FAM3968
1	Competition rubber cone - front & rear		FAM3968C
1	Moulton Smootha Ride front cone		MSLA318490018
1	Moulton Smootha Ride rear cone		MSLA318490019
2	Aluminium front strut, each		21A530
2	Adjusta Ride front struts, pair		MSLMS0500
	Adjusta Ride full car kit		SUSKIT5
3	Knuckle joint - standard, each		21A1163
3	Knuckle joint - Adjusta Ride, each		MSLMS0502
4	Knuckle joint nylon cup, each		21A423
5	Genuine tie rod (inc bushes),	each	8G4249
5	Adjustable tie rods - thick, pair		C-8G4249
5	Group 'A' Adjustable tie rods, pair suitable for road, rally or race		MSLMS0512
5	Group 'A' rose jointed tie rods, pair suitable for tarmac rally or race		MSLMS0518
	Female Rose Joint 1/2" UNF, each		MSLRJF
	Teflon 1/2"UNF female rose joint		MSLRJFTEF
	Male Rose Joint 1/2" UNF, each		MSLRJM
	Teflon 1/2"UNF male rose joint		MSLRJMTEF
6	Bolt - tie rod to bottom arm,	each	53K1031
7	Spring Washer - 5/16" UNF Spring washer,	each	GFK1125
8	Nut - Nyloc 5/16'UNF	each	GFK3322
9	Standard rubber bushes	each	31G1155
9	Uprated rubber bushes	set 4	C-STR628
9	Poly bush kit (black or red)	set 4	SPDSP655
10	Washer - cup type, tie rod end	each	2A4328
11	Washer - flat, tie rod end	each	PWZ207
12	Nyloc nut - 7/16"UNF tie rod	each	GFK3324
13	Shock Absorbers	each or kits	Shop All
13a	Rubber eyelet bush (with insert),	each	SPABB10
14	Top standard mount, LH,	each	21A474
14	Top standard mount, RH,	each	21A471
14	Top competition mount, RH,	each	C-AJJ3360
14	Top competition mount, LH,	each	C-AJJ3359
15	Set Screw - 1/4" UNF x 3/4"	each	GFK5179
16	Spring Washer - 1/4"	each	GFK1113
17	Front Shock Absorber Bottom Mount,	each	2A4337
17	Lower competition pin	each	C-AJJ3361
18	Nut - Nyloc 3/8"UNF shocker mount	each	GFK3323
19	Bump Stop - rubber twin bolt	each	2A4332
19	Bump Stop - rubber single bolt	each	FAM2764
19	Bump Stop - rubber hydrolastic type	each	21A1598
19	Bump Stop - rubber single bolt - early MK1	each	ACA9671
19	Bump Stop - poly single bolt	pair	SPDSP450E
19	Bump Stop - poly twin bolt	pair	SPDSP451
20	Nut - 1/4" UNF		GFK3211
20	Nut - nyloc 1/4"UNF		GFK3321
21	Spring Washer - 1/4"		GFK1124
21	Washer - flat 1/4Ó		GFK1113
22	Repair kit, all parts to service 1 x top arm		VPS6
23	Top arm shaft	each	2A4325
24	Sealing Ring bush - top arm shaft	each	2A7327
25	Thrust washer - top arm shaft	each	2A7324
26	Thrust collar - top arm shaft	each	2A4326
27	Retaining plate - top arm shaft	each	2A4327
28	Spring washer - top arm shaft	each	MSLMS0046
29	Nut - top arm shaft	each	MSLMS0045
30	Rebound buffer, each		2A4267
30	Poly rebound buffer, pair		SPDSP681FR
31	Shaft - lower suspension arm	each	2A4362
32	Bush - rubber (2 per arm)	each	21A1882
32	Bush kit - polyurethane uprated (black or red)	kit	SPDSP657
32	Bush set - nylon competition type	set	MSLMS0528
33	Nut - nyloc 3/8"UNF	each	GFK3323
35	Top Arm RH - suit dry suspension		21A2690

More Info

More Information
SKU	2A4337
Manufacturer	Genuine

Bought Together

Frequently Bought Together

Front Shock Absorber Lower Mounting Pin - Mini '59-'01
Special Price £7.85 £6.54 Regular Price £8.99
Nut Nyloc - 3/8" UNF
Special Price £0.32 £0.27 Regular Price £0.36
3/8" UNF Shakeproof Washer
Special Price £0.16 £0.13 Regular Price £0.19
Radius Arm Stub Axle L/H - Dry Suspension for Classic Mini
Special Price £18.53 £15.44 Regular Price £20.30
GAZ Adjustable Shock Absorbers Set 4
Special Price £233.24 £194.37 Regular Price £241.87

Customers Who Bought This Item Also Bought

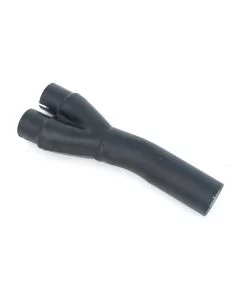

Sportex Exhaust LCB Y piece

Special Price £15.61 £13.01 Regular Price £16.70

Classic Steering Wheel Black Boss Kit to 1996

Special Price £22.76 £18.97 Regular Price £24.00

Genuine Inner A Panel RH - Mk1/2 1959-1969

Special Price £81.00 £67.50 Regular Price £89.99

Standard Clutch Plate - 1959-82

Special Price £42.13 £35.11 Regular Price £44.46

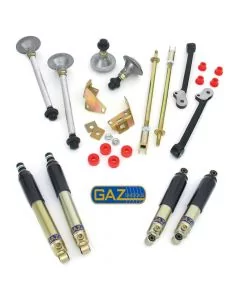

SUSCKIT02L Mini Sport performance handling Sports Ride kit with GAZ lowered shock absorbers

Performance Handling Kit with GAZ Lowered Shock Absorbers

Special Price £435.04 £362.53 Regular Price £456.49

21A1902 Mini engine mounting for all manual gearbox models 1959-01

Engine Mounting Mini 1959-01

Special Price £5.94 £4.95 Regular Price £6.37

37H2013 Right hand side Mini front back plate for twin leading shoe drum brakes 1968 on

Mini Brake Back Plate - Front RH

Special Price £33.82 £28.18 Regular Price £39.78

21A2612D/G X-drilled & grooved 8.4" Mini brake discs, pair

Brake Discs - 8.4" X-Drilled & Grooved - Mini '84 on pair

Special Price £71.04 £59.20 Regular Price £76.33

Mk2/3 Rear Lamp Assembly - Right Hand

Special Price £98.52 £82.10 Regular Price £102.85

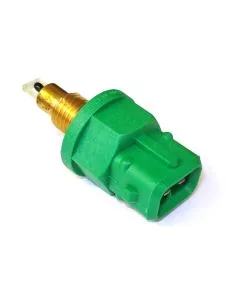

Inlet Air Temperature Sensor - Injection 1992-01
