22G931

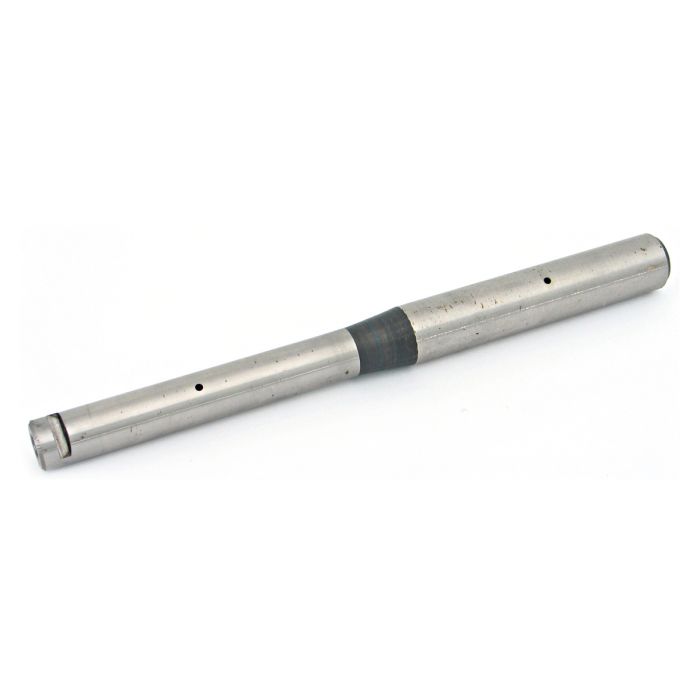

Layshaft - 4 Synchro - Standard - A Series

In stock
Special Price £18.95 £15.79 Regular Price £22.56
Be the first to review this product
A series Mini 4 synchro rod and remote change gearbox layshaft
Add to Wish List Add to Compare
Related Products
Check items to add to the cart or
  1. Mini Sport Drop Gear Set - A+
    Mini Sport Drop Gear Set - A+
    Special Price £229.86 £191.55 Regular Price £255.49
    Add to Wish List Add to Compare
  2. Classic Mini Gearbox Bearing Kit - A+
    Gearbox Bearing Kit - A+
    Special Price £138.02 £115.02 Regular Price £188.40
    Add to Wish List Add to Compare
  3. 4 Synchro Straight Cut Gear Kit - A+ Rod
    4 Synchro Straight Cut Gear Kit - A+ Rod
    Special Price £780.68 £650.57 Regular Price £823.63
    Add to Wish List Add to Compare
  4. 4 Synchro Straight Cut Gear Kit - Remote
    4 Synchro Straight Cut Gear Kit - Remote
    Special Price £780.68 £650.57 Regular Price £823.63
    Add to Wish List Add to Compare
  5. MS2038 Standard fitment helical Mini final drive gears - 3.44:1 ratio
    Final Drive Kit - Standard Full Helical - 3.44:1
    Special Price £187.52 £156.27 Regular Price £204.47
    Add to Wish List Add to Compare
  6. Synchroniser 3rd/4th Speed
    Synchroniser 3rd/4th Speed
    Special Price £120.92 £100.77 Regular Price £144.00
    Add to Wish List Add to Compare
  7. Mini A+ Gearbox Re-Condition Kit Complete
    Gearbox Re-Condition Kit - Mini A+
    Special Price £306.66 £255.55 Regular Price £380.09
    Add to Wish List Add to Compare
  8. MS3337 Standard fitment semi helical Mini final drive gears - 3.93:1 ratio
    Final Drive Kit - Standard Semi Helical - 3.93:1
    Special Price £218.53 £182.11 Regular Price £252.38
    Add to Wish List Add to Compare
22G931 A series Mini 4 synchro rod and remote change gearbox layshaft

Details

A new standard layshaft for A series Mini 4 synchro rod and remote change gearboxes. An uprated version is also available, see C-22A1738.

When changing the layshaft you should also replace the needle roller bearings that it runs in. For this one you will need 2x CHM141 and an 88G396.

Earlier 3 syncro Mini gearboxes use a 22A1371 layshaft and 2x 88G396 bearings. The later A+ 4 synchro gearbox uses a DAM3187 layshaft with a 13H9513 bearing and a CHM141 bearing.

Alternatively, if you are carrying out a full gearbox rebuild, we have available a reconditioning kit - MS4019 - or a full bearing kit - MS4018.

Buy top quality Classic Mini spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder


No.
Description
Notes
Part No.
1
1st Motion Shaft / 4th Gear
A series
22G1093
1
1st Motion Shaft / 4th Gear
- A +
DAM4930

Nut
- 1st Motion Shaft
2A3548

Lock Tab
- 1st Motion Nut
DAM4000
2
14mm 1st motion needle roller bearing

88G409
3
Bearing - 1st motion shaft
Large
ADU7619
4
Circlip
- 1st Motion shaft bearing
22G850
5
Layshaft
- 3 synchro
22A1371
5
Layshaft
- 4 synchro - A series
22G931
5
Layshaft
- A+
DAM3187
5
Layshaft Competition
A series
C-22A1738
5
Layshaft Competition
- A +
C-22A1739
6
Laygear
- 3 synchro - Cooper S
22G1100
6
Laygear
- 4 synchro - A series
22G927
6
Laygear
- A+
DAM4931
2/7
18mm 1st motion/layshaft needle roller bearing

13H9513
7
16mm layshaft needle roller bearing

88G396
8
20mm layshaft needle roller bearing

CHM141
9
Thrust Washer
- Layshaft (.124"-.126") A+
DAM3181
9
Thrust Washer
- Layshaft (.130"-.132") A+
DAM3183
10
Thrust Washer
Laygear
22G860
11
Reverse idler
Rod change type
TUB10020
12
Bush
Reverse Idler Gear
TUJ10001
13
Shaft
Reverse Idler Gear
DAM8038
14
3rd Motion Shaft
- A series - 4 synchro
22G833
14
3rd Motion Shaft
- A +
DAM7484
15
Baulk Ring

22G2033
15
Baulk Ring
Genuine
22G2033GEN
16
Sycronizer
- 3rd & 4th gear
DAM7456
17
Ball
Syncronizer
BLS107
18
Spring
Syncronizer
DAM7391
19
3rd gear
A series
22G1095
19
3rd gear
- A +
DAM4933
20
2nd/3rd gear needle roller bearing

AAU1816
21
Thrust washer
- 3rd Gear
22G947
22
Peg - locking - 2nd/ 3rd gear
all
22G843
23
Spring - locking peg
- 3rd Motion Shaft
22G154
24
2nd gear
- A+
DAM4932
26
Thrust washer
- 2nd Gear
22G839
27
Sycronizer
- 1st & 2nd gear
DAM7455
28
1st gear
- A series and A+
22G1096
29
1st gear needle roller bearing

AAU1815
30
Journal
- 1st gear
22G837
31
Bearing - 65mm double
- 3rd motion shaft
AAU1365
32
Spring Ring
- 3rd Motion Bearing retainer
ADU4992
33
Shim
- 3rd Motion Bearing retainer (.003")
GUG705645GM
34
Locating Plate
- 3rd Motion Bearing retainer
2A3581
35
Bearing retainer
- 3rd Motion - rod change
22G2726
36
Lock Tab
- 3rd Motion Bearing retainer
DAM2377
37
Bolt
- 3rd Motion Bearing retainer
SH505071
39
Lock Tab Washer
Final Drive Pinion
DAM6140
40
Nut
- 3rd Motion Shaft - A+
DAM7485
